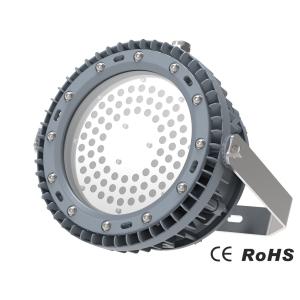

Industrial LED Flood Light 100W 120W 150W

Brand Name : KHJ

Model Number : KSL100, KSL120, KSL150

Certification : CE,RoHS

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 400pcs per day

Delivery Time : 3-8 work days

Packaging Details : 380mm*380mm*340mm

Product Name : Sealion series

Operating Voltage : 100-277 VAC ,347-480 VAC,141-391VDC,491-679 VDC

Power : 100W 120W 150W

Luminaire Efficacy : 140lm/W

Connecting Terminals : 3*1.0-4mm²(L+N+PE)

Available cable outer diameter : φ7-φ14(mm)

Cable Entries : 2XM25*1.5 (M20*1.5, NPT 3/4” are optional)

Earthing Protection : M4 (Internal & external earth bolts)

Contact Now

Energy saving weatherproof Industrial LED flood light Sealio series LED 100W 120W 150W

Industrial Sealion series LED Industrial flood light 100W 120W 150W

Highlight: LED Flood light

Features And Benefits:

1. High power and efficient LED Industrial light, at least 50% energy saving than traditional HPS lighting sources.

2. Durable die-cast aluminum housing plus strong tempered glass,IK08.

3. Designed with separated Led source compartment and Led driver compartment, much better heat dissipation.

4. With junction box for loop-in and loop-out wiring connection.

5. Long-life LED technology, more than 50,000 hours.

6. Reliable LED driver from Meanwell.

7. Ambient temperature from -40℃ to 55℃.

8. 5 Years performance warranty.

Product Differentiation:

Executive Standard	EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8
Certificate	CE, RoHS
Ambient temp	-40℃ ≤ Ta ≤ +55℃
Ingress Protection	IP66
Cable entry	M251.5(M201.5,3/4 NPT for optional)

Applications:

Sealion series Industrial LED Flood light are Suitable for most of non-hazardous areas:

Tunnels

Pow plants

Workshops

Factories

Tunnels

Rail

Warehouse

Packing lots

Industrial LED Flood Light 100W 120W 150W

Ordering information:

P/N	Operating Voltage(V)	Luminous Flux(lm)	Power	CRI	Color Temp.	CCT(K)
KSL100*WM-J-E	100~277AC (141~392 DC)	13000	100	70	Warm white	3000±300
KSL100*NH-J-E		14700	100	70	Natural white	4000±300
KSL100*NH-J-E		14700	100	70	Natural white	5000±300
KSL100*CH-J-E		14700	100	70	Cool white	5700±300
KSL120*WM-J-E		15600	120	70	Warm white	3000±300
KSL120*NH-J-E		17640	120	70	Natural white	4000±300
KSL120*NH-J-E		17640	120	70	Natural white	5000±300
KSL120*CH-J-E		17640	120	70	Cool white	5700±300
KSL150*WM-J-E		19500	150	70	Warm white	3000±300
KSL150*NH-J-E		22050	150	70	Natural white	4000±300
KSL150*NH-J-E		22050	150	70	Natural white	5000±300
KSL150*CH-J-E		22050	150	70	Cool white	5700±300

Remarks:

1. *Stands for beam angle , including H4V4 / H5V5 / H6V6;

2. For beam angle H4V4 and H5V5,the luminous flux will be 15% less.
